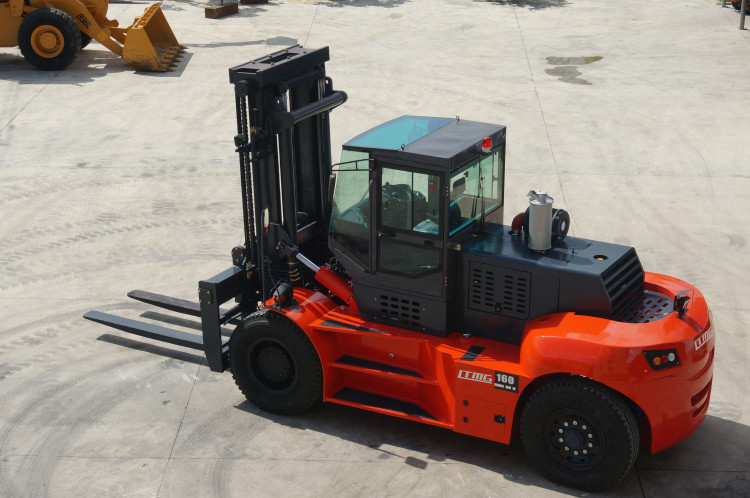

chinese new condition diesel engine 16 ton hydraulic forklift | FD160
Features and Advantages of 16 ton hydraulic forklift | FD160
Highlights:
Flexible and efficient operation
The whole machine is compact, small in shape and only 5.1 m on the turning radius.
The core technologies such as proprietary flow sharing, the key position of the cargo fork, and the microdynamic control are fast, the operation speed is good, and the efficiency is high.
Safe and reliable, use save heart
After years of crane development experience, the control system of the industry product is perfected and upgraded, and the maximum realization is the active protection.
Industry top allocation, professional match optimization and systematic evaluation test, effectively guarantee the reliability of the product.
Economic and environmental protection, the cost savings
It has been used for many years, and the whole machine is light weight and low fuel consumption.
The proprietary door is able to recover the technology and save 20% (optional) fuel economy.
People-oriented, riding comfortably
The professional design and man-machine engineering simulation analysis, reasonable decorate a variety of climbing, access channel and manipulate the position, to achieve the perfect combination of functionality and aesthetics, pleasing generous, easy to use.
Panorama driver room, high power cooling air conditioning, high definition rebus image (optional), with human-centered detail design, riding in comfort.
The specifications of chinese new condition diesel engine 16 ton hydraulic forklift | FD160
| General | Manufacture | | LTMG |
| Model | | FD160T |
| Rated capacity | Kg | 16000 |
| Load center | mm | 600 |
| Dimensions | Free lift height | mm | 100 |
| Fork distance | Min./Max. | mm | 680/1700 |
| Mast tilt angle | | deg | 8/12 |
| Front overhang | mm | 1050 |
| Overall dimensions | Length to face of fork | mm | 6950 |
| Overall width | mm | 2550 |
| Mast lowered height | mm | 3240 |
| Mast extended height | mm | 4750 |
| Overhead guard height | mm | 2700 |
| Turning radius | mm | 5400 |
| Min.right angle aisle width | mm | 3712 |
| Performance | no load/full load | Travel spead | Km/h | 28/23 |
| Lifting spead | mm/sc | 250/220 |
| Max.grade abnlity | % | 15 |
| Max.Pull force(full load) | KN | 110 |
| Chassis | Tyres | Front | | 4*12.00-24*18PR |
| Rear | | 2*10.00-20*16PR |
| Tread | Front | mm | 1850 |
| Rear | mm | 1820 |
| Wheelbase | mm | 3200 |
| Min.Ground clearance( no load/full load) | Mast | mm | 250/240 |
| Frame | mm | 250/240 |
| Drive unit & control | Battery | V/AH | 24/100*2 |
| Engine | Model | | YC6B125-T11 |
| Rated output | Kw/rpm | 92/2300 |
| Rated torque | N.m/rpm | 450/1300-1400 |
| NO.of cylinder | | 6 |
| Bore*stroke | mm | 108*125 |
| Displacement | L | 6.871 |
| Fuel tank capacity | L | 300 |
| Transmissions | Type | | Hydraulic |
| Shift Front/rear | | 2/1 |
16 ton hydraulic forklift | FD160
After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
