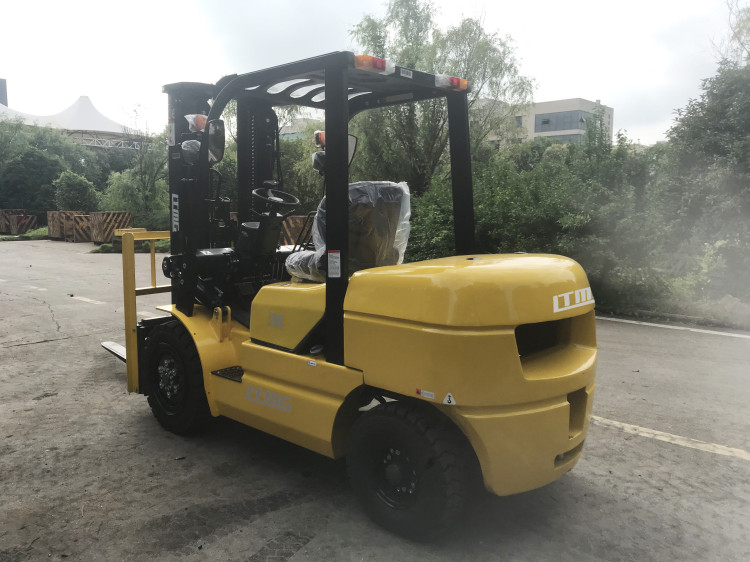

3.5 ton diesel hydraulic forklift truck with fork positioner 1670mm long fork
Feature
1. according to customer demand, customized 1670mm fork length.
2. with fork positioner, so that the fork can move left and right
3. 4.5m two stage mast, wide mast broadens visual field.
4. side shift function
5. automatic transmission,
6. emergency stop switch, mechanical gear: one button-based control, which can effectively protect the electrical system.
The specification of 3.5 ton diesel forklift
| FD35T Technology Specification |
| Features | 1 | Manufacturer | | | LTMG |
| 2 | Model | Power shift T/M | FD35T |
| Manual shift T/M | FD35C |
| 3 | Load capacity | | kg | 3500 |
| 4 | Load center | | mm | 500 |
| 5 | Power unit | | | Diesel |
| 6 | Operator type | | | Driver/seat |
| 7 | Tire type | Front/rear | | Pneumatic |
| 8 | Wheel | Front/rear | | 2/2 |
| Dimension | 9 | Max. lifting height | | mm | 4500 |
| 10 | Free lift | | mm | 150 |
| 11 | Fork size | L*W*T | mm | 1670*125*50 |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 |
| 13 | Overall length(without fork) | | mm | 2760 |
| 14 | Total width | | mm | 1285 |
| 15 | Mast height (fork lowering) | | mm | 2075 |
| 16 | Overall height fork raised | With backrest | mm | 4250 |
| 17 | Height to head guard | | mm | 2140 |
| 18 | Turning raduis(outside) | | mm | 2495 |
| 19 | Front face of fork to front axle | | mm | 485 |
| 20 | Min. right angle stacking aisle
without load length&clearence | | mm | 2975 |
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 18/19.5 |
| 22 | Lifting full/no load | mm/s | 450/500 |
| 23 | Lowering full/no load | mm/s | 450/420 |
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 2100/1000 |
| Manual shift T/M full/no load | kg | 2100/1000 |
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 |
| Manual shift T/M full/no load | % | 18/20 |
| Weight | 26 | Truck weight | | kg | 4780 |
| 27 | Weight distribution | Full load
front/rear | kg | 7380/900 |
| 28 | No load
front/rear | kg | 1820/2960 |
| Frame | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 28x9-15-12PR |
| 31 | rear axle | 6.50-10-10PR |
| 32 | Wheelbase | | mm | 1700 |
| 33 | Tread | Front/rear | mm | 1060/970 |
| 34 | Ground clearence | At lowest point(mast) | mm | 120 |
| Frame | mm | 135 |
| 35 | Brake | Service brake | | Hydraulic-foot pedal |
| Parking brake | | Mechanical-hand lever |
| Engine | 36 | Battery | Voltage/capacity | V/AH | 12/80 |
| 37 | Engine | Model | | ISUZU 4JG2 |
| Rated power | kw/rpm | 44.8/2450 |
| Rated torque | N.m/rpm | 186/1800 |
| Number of cylinders | | 4 |
| Placement | L | 3.059 |
| Fuel tank capacity | L | 70 |
| 38 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M |
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 |
After-sale service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
Our compnay
FAQ:
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
